More neat P-61 stuff! Performance charts, cockpit photos, systems diagrams and more . These are images taken from original World War II pilot & technical manuals for the Northrop P-61 'Black Widow" Night Fighter.

(Get the complete 64 page P-61 pilot's manual on our new P-61 DVD)

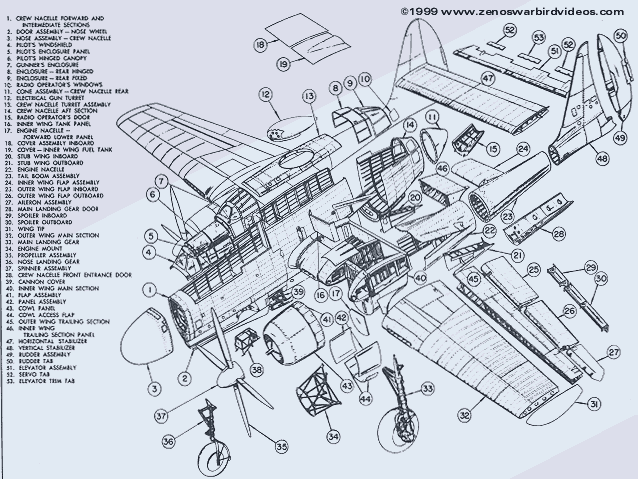

Cutaway Diagram -- Major Components

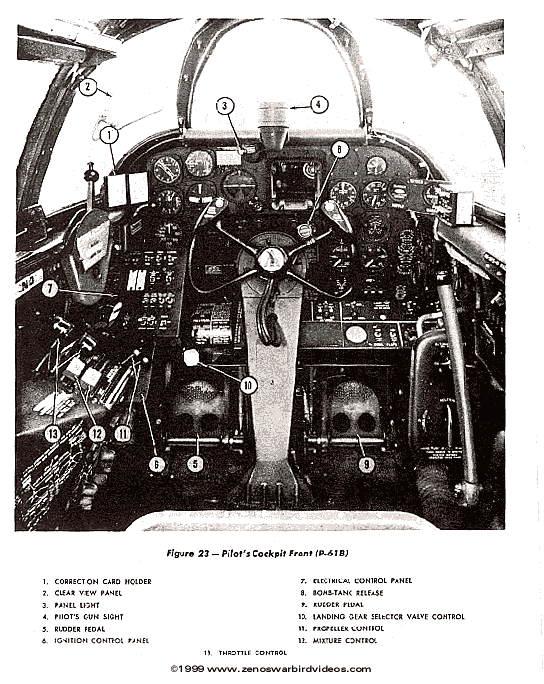

P-61B: Cockpit, Front

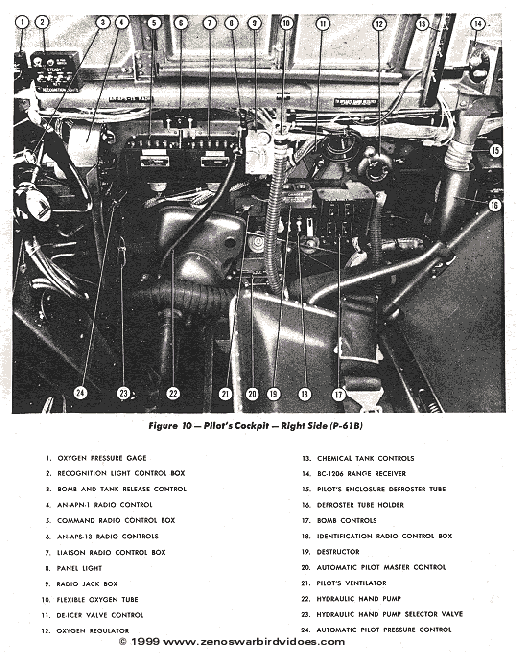

P-61B: Cockpit, Right

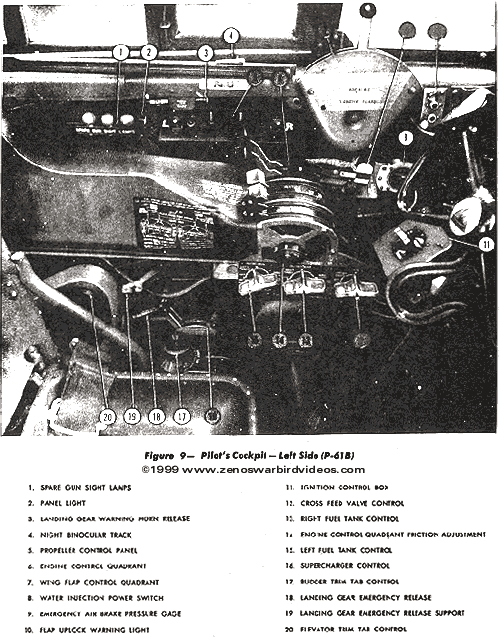

P-61B: Cockpit, Left

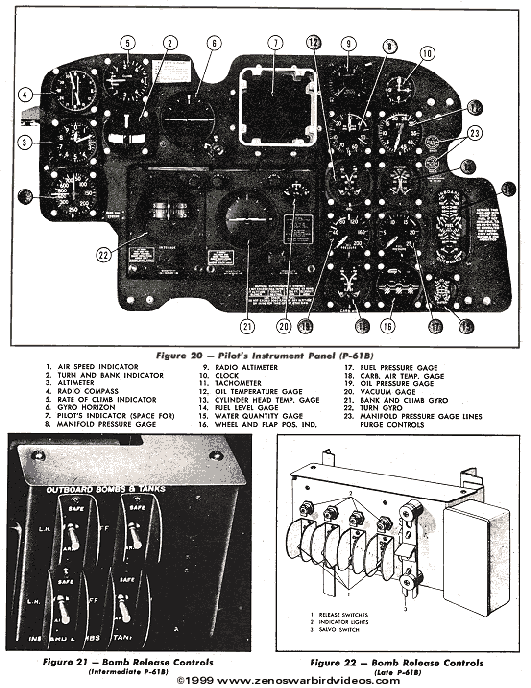

P-61 Pilot's Instruments & Bomb Release Panel

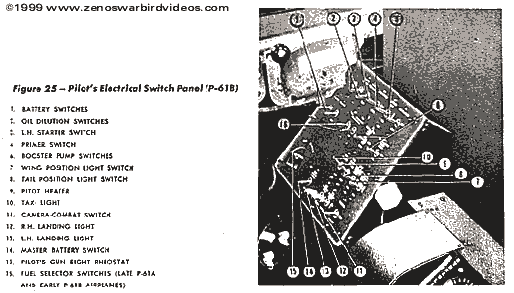

P-61 Electrical Control Panel

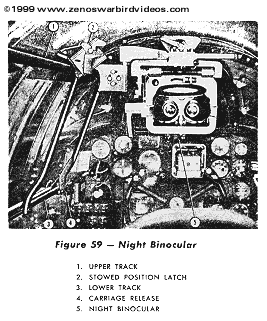

P-61 Night Binoculars

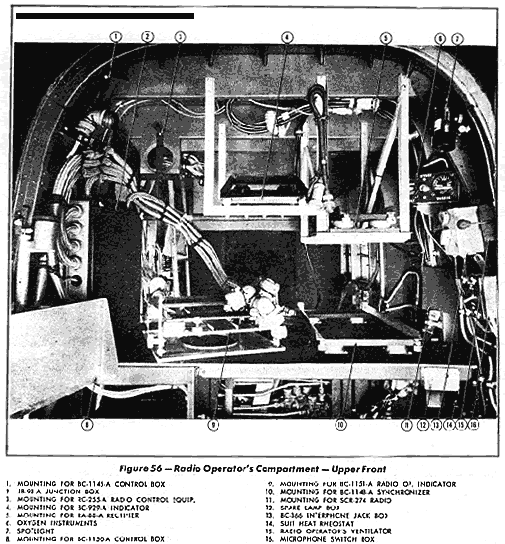

P-61 Radio Operations, Upper

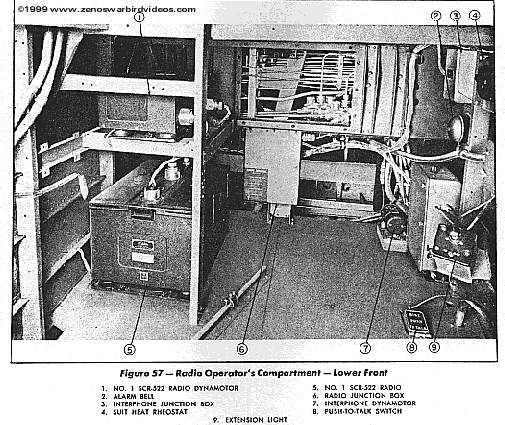

P-61 Radio Operations, Lower

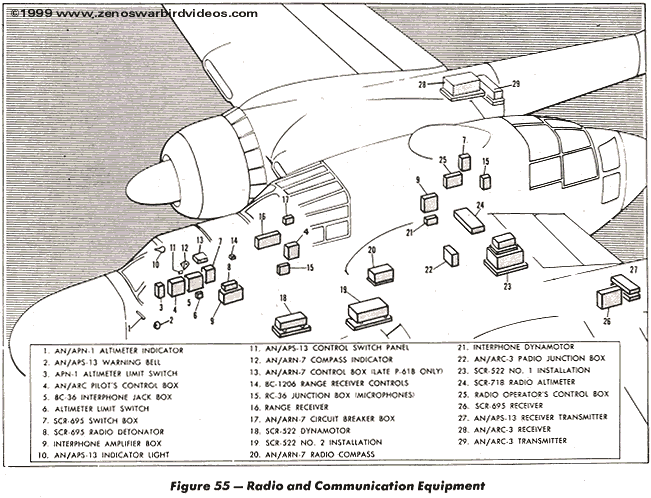

P-61 Radio & Communications Equipment

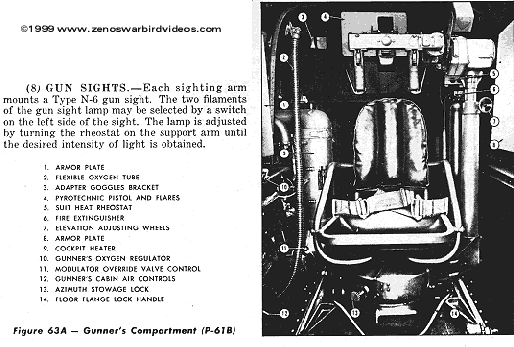

P-61 Gunner's Compartment

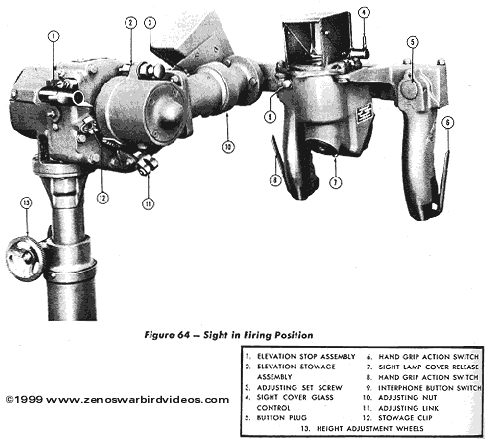

P-61 Turret Control Gun Sight

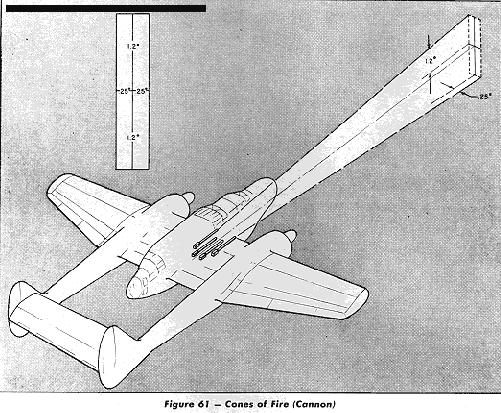

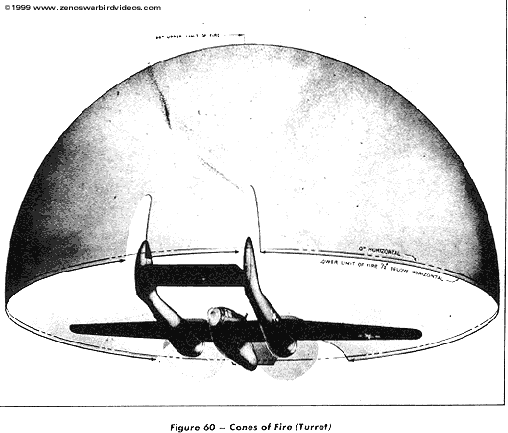

P-61 Cones of Fire, Turret

P-61 Cones of Fire, Canon

P-61 Gunnery Equipment

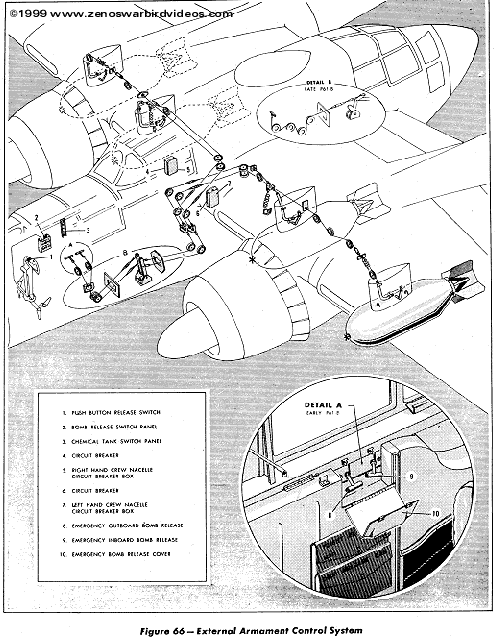

P-61 External Armament Systems

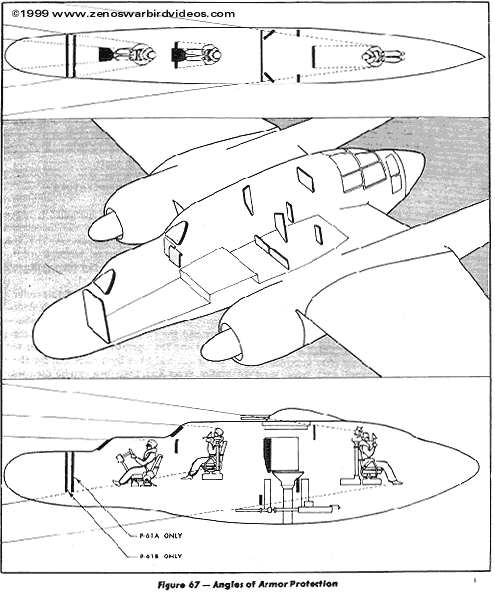

P-61 Angles of Armor Protection

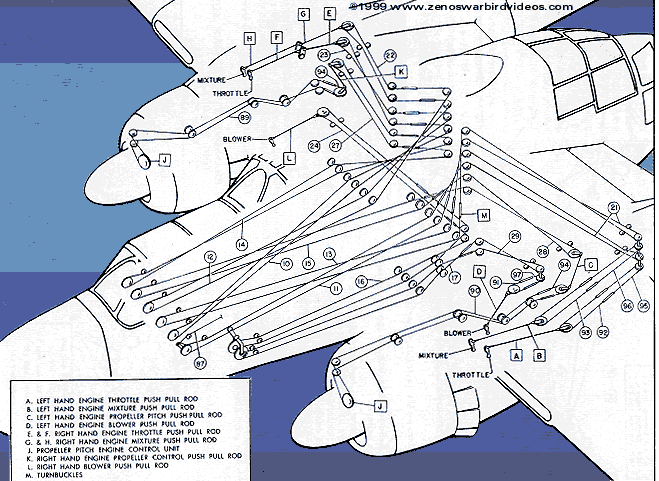

P-61 Prop and Engine Controls

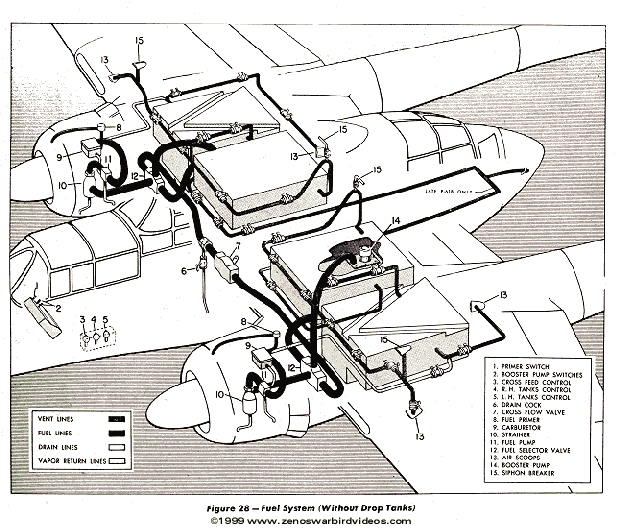

P-61 Fuel System

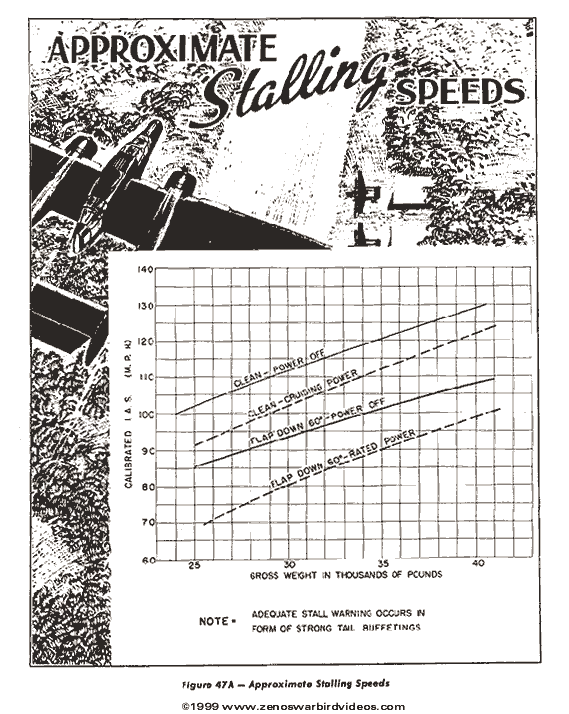

P-61 Stall Chart

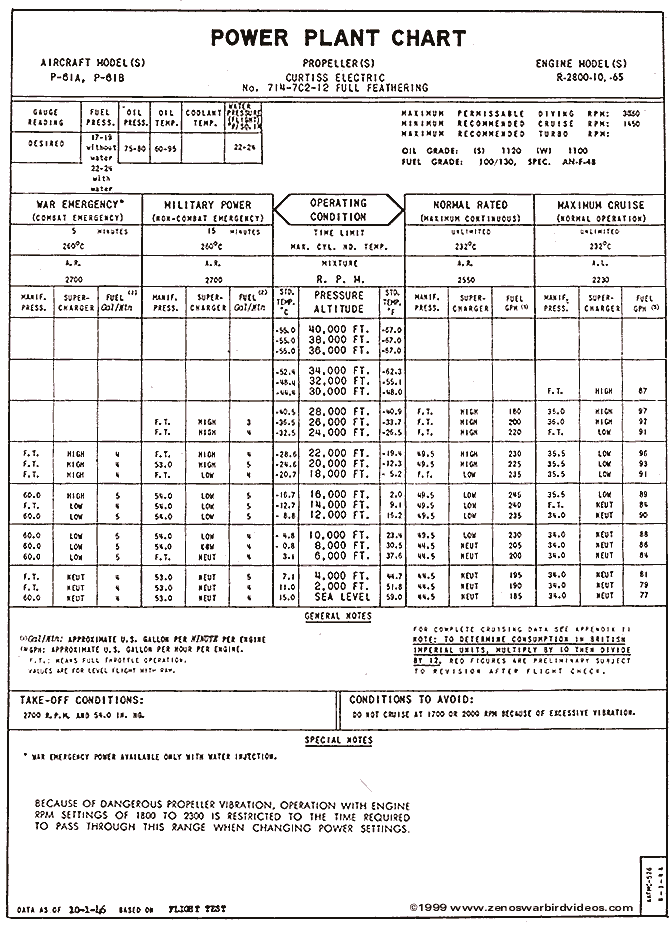

P-61 Power Plant Chart
